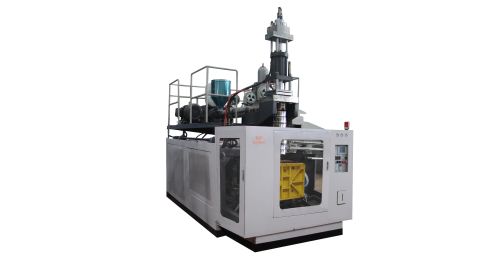

85Y1X1.25D 25L Blow Molding Machine

85H1X1.25D 25L Blow Molding Machine	Example	Bottle 15 L, 1100 g
One Station One Cavity up to 25 L	Output	45/hr, 1100 /day, 0.38million/year

1. Die head and lifting platform are designed in special way. Hence, it is more stable to raise the die head and move the die head forwards and backwards.
2. According to the
3、According to the double pump, proportion flow valve, the power consumption can be decrease;
4、Automatic lubrication system;
5、 It also has down blow pin, down widen device, mould stretch , double clamping and robot hand;
6、It could be optional configured with telemaintenance system；
7、The screw diameter is 85mm ；
8、The maximum blow volume is 25L，PE、PP、PS、PC、PVC can be used, suitable for production of chemical barrels、auto parts and pesticide sprayer etc.

Carriage Horizontal Shuttle Stroke	mm	/
Dry Cycle	sec	3"
Clamp Force	kN	400
Pressure of Hydraulic System	Mpa	14
Pressure of Pneumatic System	Mpa	0.6-0.8
Pressure of Cooling System	Mpa	0.2-0.3
Air Consumption (Estimated)	m3 / hr	5
Minimum Pressure for Cooling Water to Machine	Mpa	0.2
Power of Pump Motor for Hydraulic Movements	kW	15
Power of Servo Pump Motor (if Needed)	kW	(5.5)
Power of Die Head Heating	kW	16
Power of Knife	kW	/
Total Power Installed (Estimated, Maximum)	kW	83.5

Cavities		1
Max. Center Distance	mm	/
Max. Container Width	mm	680
Max. Container Height	mm	350
Max. Container Depth	mm	340
Container Capacity (Estimated)	lt	25
