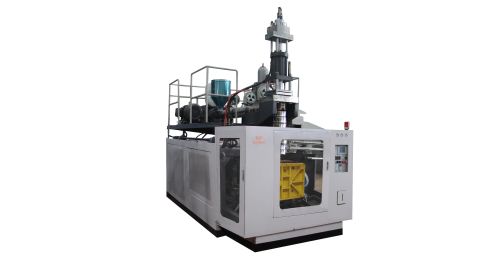

25L Blow Moulding Machine

Blowing Plastic

NATF-20-large

E-catalog Inquiry Now Viedo Applied Products

Introduction

This 25L blow moulding machine is specially designed for production of engineering part, auto parts, chemical barrels, pesticide sprayer and so on. This equipment is with blow volume 25L and an output of 45/hr, 1100 /day.

Model：85Y1x1.25D for 25L Engineering Part

Brief Introduction

85Y1x1.25D for 25L Engineering Part	Example	bottle 15L, 1100g
One station, one cavity blow moulder up to 25L	Output	45/hr, 1100 /day, 0.38million/year

General Features:

Specification of 25L Blow Moulding Machine：

1. The machine is with new platform design for the die head, which separates the lifting platform from head-rising platform, not only making the lifting and rising of the die head more stable, but also making the die head more easy to move forwards and backwards.
2. The main body is equipped with accumulator to avoid the explosive fissile convergence line that caused by parision combined in the material-storage-on-top accumulator;
3. Equipped with the double pump, proportion flow valve, the power consumption can be reduced effectively;
4. This 25L blow moulding machine has automatic lubrication system and robot hand, down widen device, down blow pin, mould stretch, double clamping also;
5. It could be optional configured with tele-maintenance system；
6. The screw diameter is 85mm；
7. Applicable materials: PP, PVC, PE, PC, PS; the max blow volume: 25L;
8. Our machine can be used in making of auto parts, chemical barrels, pesticide sprayer and so on.

Technical Data

General Features of 25L Blow Moulding Machine

Carriage horizontal shuttle stroke	mm	/
Dry cycle	sec	3"
Clamp force	kN	400
Pressure of Hydraulic System	Mpa	14
Pressure of Pneumatic System	Mpa	0.6-0.8
Pressure of Cooling System	Mpa	0.2-0.3
Air consumption (estimated)	M3 / hr	5
Minimum pressure for cooling water to machine	Mpa	0.2
Power of pump motor for hydraulic movements	kW	15
Power of servo pump motor(if needed)	kW	(5.5)
power of Die head heating	kW	16
Power of knife	kW	/
Total power installed (estimated, maximum)	kW	83.5

2. Extruders

Screw diameter	mm	85
Extruder rotating speed	/	20~66
Power of electric motor	kW	30
Power of barrel heating	kW	15
Max throughput = PE	kg/h	130

3. Mould Dimensions

Maximum Width	A	mm	700
Maximum Length	B	mm	500
Minimum Depth	C	mm	250
Clamp Open Max. Daylight	D	mm	900
Open Stroke	E	mm	400
Max Weight of Mould		kg	500

4. Production Possibilities

Cavities		1
Max center distance	mm	/
Max container width	mm	680
Max container height	mm	350
Max container depth	mm	340
Container capacity (estimated)	lt	25

5. Machine Dimensions

Maximum width	mm	1800
Maximum length	mm	3400
Maximum height	mm	3000
Total weight	kg	6000

Packaging and transportation:

Equipment: Packed with Moisture-proof Film

Light Spare part: Packed with Carton

Heavy Spare part: Packed with Wooden Case

We provide our costums one year warranty for the 25L blow moulding machine, free installation for domestic market, charging for debugging in oversea market and lifetime services. The replacement of machine parts is one year for free, expect the rapid wear parts.
