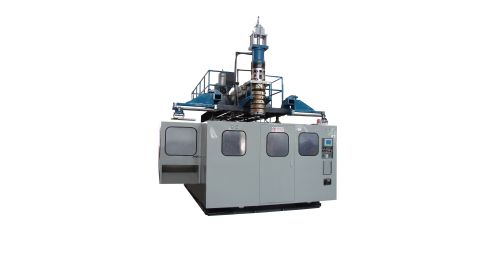

30L Double Station Extrusion Blow Moulding Machine

Blowing Plastic

NATF-20-large

E-catalog Inquiry Now Viedo Applied Products

Description

The 30L extrusion blow moulding machine is specially designed with double stations and with a out put of 90/hr, 2160 /day. This equipment is mainly applicable to the production of various packing barrels with PE and PP material and capacity between 10~30L, toolbox, motorcar parts such as gasoline bank, wind pipeand other large and medium-sized plastic hollow products.

Model：90K+H+S2X1.30D

30L double station extrusion blow moulding machine is for production of toolbox, motorcar parts such as gasoline bank, wind pipeand other large and medium-sized plastic hollow products.

Brief Introduction of 30L Extrusion Blowing Molding Machinery

90K+H+S2X1.30D	Example	Chemical barrel 25liters, 1.5kg
Two station one cavity blow moulder up to 30L	Output	90/hr, 2160 /day, 756000/year

General Features:

Specification：

1. The machine is with new platform design for the die head, which separates the lifting platform from head-rising platform, not only making the lifting and rising of the die head more stable, but also making the die head more easy to move forwards and backwards;
2. The main body is equipped with accumulator to avoid the explosive fissile convergence line that caused by parision combined in the material-storage-on-top accumulator;
3. Equipped with the double pump, proportion flow valve, the power consumption can be reduced effectively;
4. It has automatic lubrication system, and robot hand, down widen device, down blow pin, double clamping also;
5. It could be optional configured with tele-maintenance system;
6. It’s driven by the air cylinder instead of the oil pump, with low noise and zero contamination
7. Double crank links to lock the mold & Strong clamping force;
8. Automatic and manual operation;
9. Different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
10. With unique design of the valve position, which is reliable and safe, the air pressure diagram of the machine can be easy to understand;
11. The screw diameter of the 30L double station extrusion blow moulding machine is 90mm;
12. Applicable materials: PP, PVC, PE, PC, PS; the max blow volume: 30L;
13. Our machine can be used in making of auto parts, chemical barrels, pesticide sprayer and so on.

Technical Data

1. General Features

Carriage horizontal shuttle stroke	mm	900
Dry cycle	sec	5.8"
Clamp force	kN	170
Pressure of Hydraulic System	Mpa	14
Pressure of Pneumatic System	Mpa	0.6-0.8
Pressure of Cooling System	Mpa	0.2-0.3
Air consumption (estimated)	M3 / hr	5
Minimum pressure for cooling water to machine	Mpa	0.2
Power of pump motor for hydraulic movements	kW	18.5
Power of servo pump motor(if needed)	kW	(7.5)
power of Die head heating	kW	16(22)
Power of knife	kW	/
Total power installed (estimated, maximum)	kW	96.5(102.5)
