30L Double Station Extrusion Blow Moulding Machine

Blowing Plastic

NATF-20-large

Blowing Plastic

E-catalog Inquiry Now Viedo Applied Products

Description

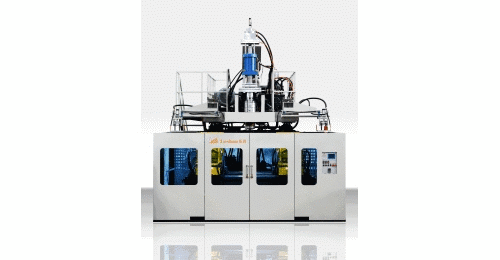

This blowing moulding machine is designed for production of container made from materials: PP, PVC, PE, PC, PS, with blow volume of 30L, and output 90/hr, 2160 /day.

Model：100U+H+S2X1.30F

Brief Introduction

100U+H+S2X1.30F	Example	Can 30L, 1600g
Two station one cavity blow moulder up to 30L	Output	90/hr, 2160 /day, 0.75million/year

General Features:

Specification：

1. The machine is with new platform design for the die head, which separates the lifting platform from head-rising platform, not only making the lifting and rising of the die head more stable, but also making the die head more easy to move forwards and backwards;
2. The main body of the 30L blow moulding machine is equipped with accumulator to avoid the explosive fissile convergence line that caused by parision combined in the material-storage-on-top accumulator;
3. Equipped with the double pump, proportion flow valve, the power consumption can be reduced effectively;
4. It has automatic lubrication system, and robot hand, down widen device, down blow pin, double clamping also;
5. 30L blow moulding machine could be optional configured with tele-maintenance system;
6. It’s driven by the air cylinder instead of the oil pump, with low noise and zero contamination
7. Double crank links to lock the mold & Strong clamping force;
8. Automatic and manual operation;
9. Different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
10. With unique design of the valve position, which is reliable and safe, the air pressure diagram of the machine can be easy to understand;
11. The screw diameter is 100mm;
12. Applicable materials: PP, PVC, PE, PC, PS; the max blow volume: 30L;
13. Our machine can be used in making of auto parts, chemical barrels, pesticide sprayer and so on.

Technical Data

1. General Features

Carriage horizontal shuttle stroke	mm	900
Dry cycle	sec	5.8"
Clamp force	kN	200
Pressure of Hydraulic System	Mpa	14
Pressure of Pneumatic System	Mpa	0.6-0.8
Pressure of Cooling System	Mpa	0.2-0.3
Air consumption (estimated)	M3 / hr	5
Minimum pressure for cooling water to machine	Mpa	0.2
Power of pump motor for hydraulic movements	kW	18.5
Power of servo pump motor(if needed)	kW	(7.5)
power of Die head heating	kW	22
Power of knife	kW	/
Total power installed (estimated, maximum)	kW	153

2. Extruders

Screw diameter	mm	100
Extruder rotating speed	/	20-71
Power of electric motor	kW	75
Power of barrel heating	kW	30
Max throughput = PE	kg/h	230

3. Mould Dimensions

Maximum Width	A	mm	550
Maximum Length	B	mm	700
Minimum Depth	C	mm	250
Clamp Open Max. Daylight	D	mm	1000
Open Stroke	E	mm	500
Max Weight of Mould		kg	600

4. Production Possibilities

Cavities		1
Max center distance	mm	/
Max container width	mm	530
Max container height	mm	550
Max container depth	mm	390
Container capacity (estimated)	lt	30

5. Machine Dimensions

Maximum width	mm	4000
Maximum length	mm	5700
Maximum height	mm	4800
Total weight	kg	20000
