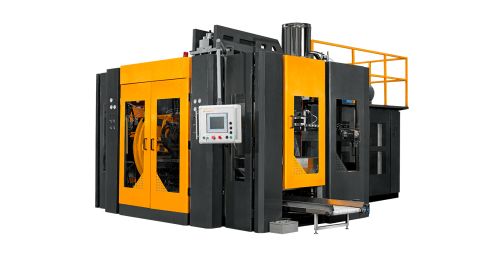

90-65-40U+S2X4.15F 2L High Production Blow Molding Machine

E-catalog Inquiry Now Viedo Applied Products

Introduction

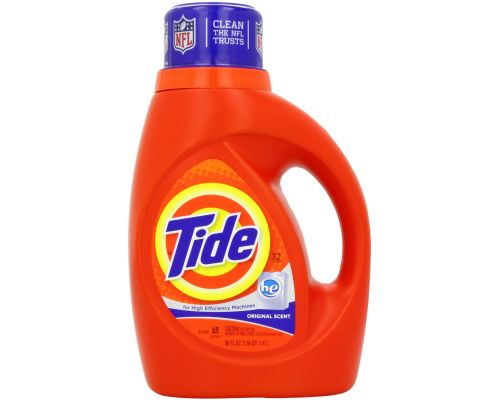

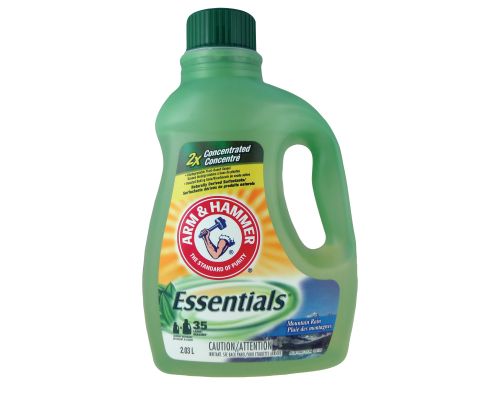

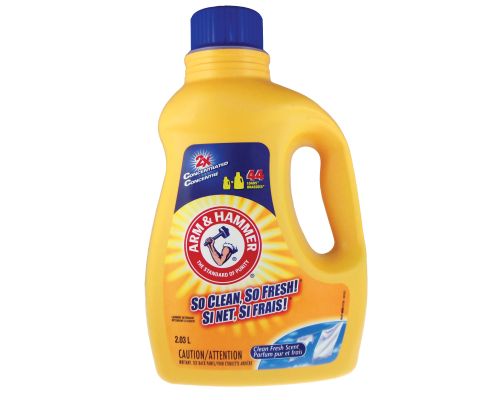

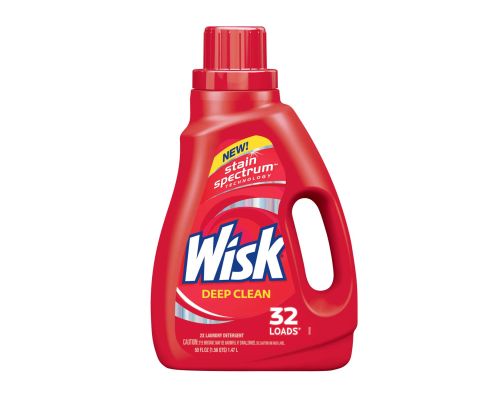

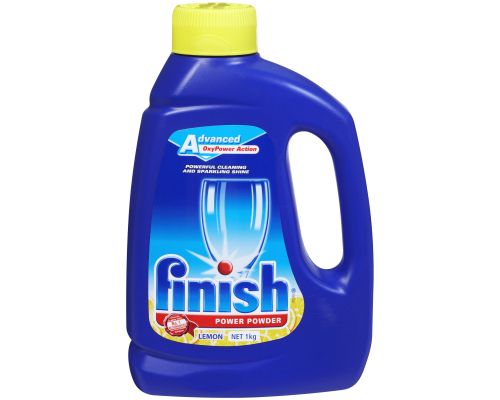

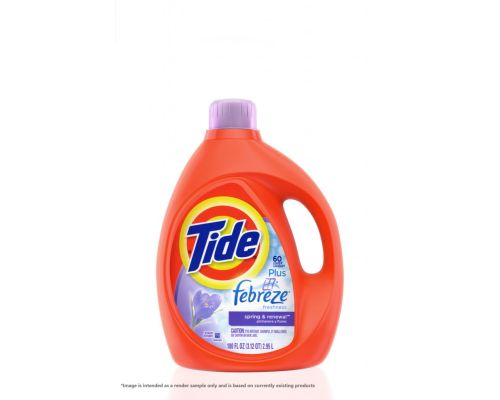

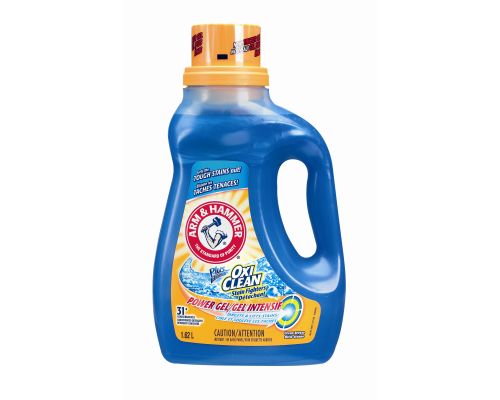

90-65-40U+S2X4.15F 2L high production blow molding machine is utilized for production of lubrication bottles, cleaning stuff bottles, toys, auto parts and other plastic articles whose volume is between 1 and 2 L. Available plastic materials are PE, PP, PS, PC, PVC, etc. Take production of dishwasher detergent bottle for example, suppose that this bottle is 1500 ml and 103 g, then, this detergent bottle blow moulding equipment can bring out 1200 bottles per hour, 28800 per day, and 10.08 million per year.

Advantages

1. In this high production blow molding machine, super harden guide column plus front linear guide rail is applied. Thus, it features small mechanical friction, strong wear resistance, stably fast moving speed.
2. Double proportional vale is applied to control oil speed and pressure in the oil channel. Besides, reversing valve is used for flow direction control, and reduction valve for brake.
3. Mould locking force is uniform due to special design for the mould to bear stress.
4. Made of ductile cast iron solid, the whole mould frame and moulds are firm enough to work for long time.

General Features of 90-65-40U+S2X4.15F 2L High Production Blow Molding Machine

1. The screw diameter is 90 mm, 65 mm, or 40 mm.
2. This detergent bottle blow moulding equipment has four mould cavities and double stations. Special screws for material recycle are adopted.
3. Scissors toggle clamping system features high rigidity mold clamping. The clamping force is much larger than machine produced by other manufacturers.
4. With high accuracy linear guide rail, it features fast mould moving speed and stable production.
5. Power consumption is decreased due to the adoption of double proportional flow valve.
6. 90-65-40U+S2X4.15F 2L high production blow molding machine is configured with automatic lubrication system, thickness control system and in-mould labeling function.
7. Touch screen is designed according to ergonomics, which makes operation more user-friendly. Besides, the industrial PC networking supports WIFI or 3G for signal transmission.

Technical Data of 90-65-40U+S2X4.15F High Production Blow Molding Machine

1. General Features

Carriage Horizontal Shuttle Stroke	mm	700
Dry Cycle	sec	5"
Clamp Force	kN	172
Pressure of Hydraulic System	Mpa	14
Pressure 0f Pneumatic System	Mpa	0.6-0.8
Pressure of Cooling System	Mpa	0.2-0.3
Air Consumption (Estimated)	m3 / hr	5
Minimum Pressure for Cooling Water to Machine	Mpa	0.2
Power of Pump Motor for Hydraulic Movements	kW	14
Power of Servo Pump Motor (if Needed)	kW	(5.5)
Power of Die Head Heating	kW	13
Power of Knife	kW	2
Total Power Installed (Estimated, Maximum)	kW	110.3(115.8)

2. Extruders

Screw Diameter	mm	90/65/40
Extruder Rotating Speed	/	5-65/20~67/20~40
Power of Electric Motor	kW	37/15/5.5
Power of Barrel Heating	kW	/17.512.5/3/3
Max. Throughput = PE	kg/h	160/60/10
Max. Throughput = PP	kg/h	110/40/7

3. Mould Dimensions

Maximum Width	A	mm	130
Maximum Length	B	mm	310
Minimum Depth	C	mm	220
Clamp Open Max. Daylight	D	mm	260
Open Stroke	E	mm	390
Max Weight of Mould		kg	100

4. Production Possibilities

Cavities		4
Max center distance	mm	140
Max. Container Width	mm	130
Max. Container Height	mm	220
Max. Container Depth	mm	110
Container Capacity (Estimated)	lt	2

5. Machine Dimensions

Maximum Width	mm	4700/(2100)
Maximum Length	mm	4170
Maximum Height	mm	2700
Total Weight	kg	9000

One year’s warranty period is offered to each high production blow molding machine. During this period, machine parts (excluding the fast wear parts) can be changed into new ones for free if they are broken. And we provide installation service to domestic clients.
