Product Examples by 55K+S2X1.2F 2L Toy/Container Blowing Machine

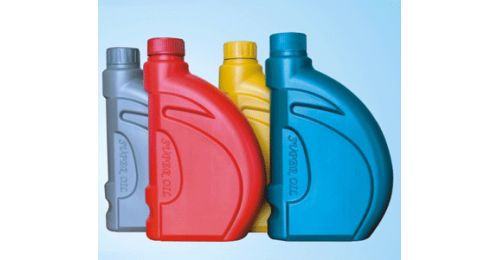

oil bottle

wide_mouth_jars

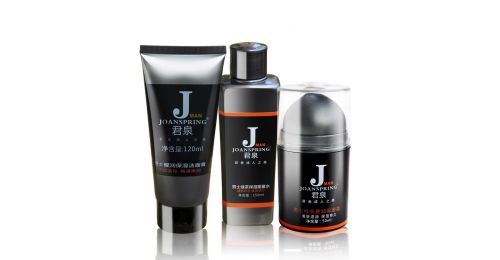

Cleaning products

E-catalog Inquiry Now Viedo Applied Products

Introduction

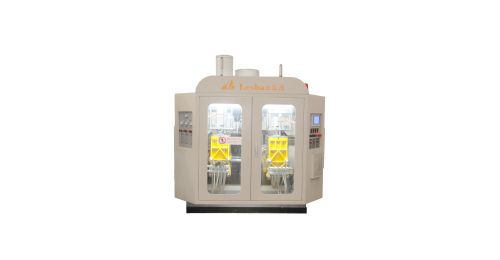

55K+S2X1.2F 2L toy/container blowing machine is with one to four cavities and two stations. For the machine with one cavity, the maximum mould volume of each cavity is 2 L, with two cavities is 1 L, and with four cavities is 500 ml. It can produce 1200 Christmas balls (100 ml and 9 g) per hour and 30000 per day.

General Features

1. The screw diameter is 55 mm. Gross mould volume is 2 L no matter there is one, or two, or three, or four mould cavities. 55K+S2X1.2F 2L toy/container blowing machine is equipped with upon to six mould heads.
2. We adopt Siemens PLC system and human-machine interface.
3. In the hydraulic system, Yuken hydraulic valves and pumps are applied.
4. Its plasticizing system is of high efficiency and energy saving.
5. Invertor and harden surface gear box are adopted to serve for the extruding system.
6. 55K+S2X1.2F 2L toy/container blowing machine features convenient mold changing. The extruding cover can be adjusted up and down.
7. Parison injection is conducted with the adoption of single hydraulic cylinder. During this process, no synchronization generates.
8. Applying center locking clamping mechanism, the machine is of long-term clamping force.

Technical Data of 55K+S2X1.2F Toy/Container Blowing Machine

1. General Features

Carriage Horizontal Shuttle Stroke	mm	400
Dry Cycle	sec	6”
Clamp Force	kN	30
Pressure of Hydraulic System	Mpa	16
Pressure of Pneumatic System	Mpa	0.6-0.8
Pressure of Cooling System	Mpa	0.2-0.3
Air Consumption (Estimated)	m3 / hr	5
Minimum Pressure for Cooling Water to Machine	Mpa	0.2
Power of Pump Motor for Hydraulic Movements	kW	5.5
Power of Servo Pump Motor (if Needed)	kW	(5.5)
Power of Die Head Heating	kW	4
Power of Knife	kW	2
Total Power Installed (Estimated, Maximum)	kW	29.7(35.2)

2. Extruders

Screw Diameter	mm	55
Extruder Rotating Speed	/	20~60
Power of Electric Motor	kW	11
Power of Barrel Heating	kW	7.2
Max. Throughput = PE	kg/h	32
Max. Throughput = PP	kg/h	22.4

3. Mould Dimensions

Maximum Width	A	mm	250
Maximum Length	B	mm	300
Minimum Depth	C	mm	75
Clamp Open Max. Daylight	D	mm	330
Open Stroke	E	mm	130
Max Weight of Mould		kg	100

4. Production Possibilities

Cavities		1	2	4
Max. Center Distance	mm	/	85/120/160	65/70//75
Max. Container Width	mm	280	75/110/150	55/60/65
Max. Container Height	mm	30	30	30
Max. Container Depth	mm	75	75	75
Container Capacity (Estimated)	lt	2	1	0.5

5. Machine Dimensions

Maximum Width	mm	1930
Maximum Length	mm	3130
Maximum Height	mm	2100
Total Weight	kg	3400

One year’s warranty period is provided to each 55K+S2X1.2F 2L toy/container blowing machine. During this period, broken machine equipment can be changed into new ones (excluding the quick wear parts). Besides, we offer free installation service to domestic clients, and all-life services to all clients including the overseas clients.
