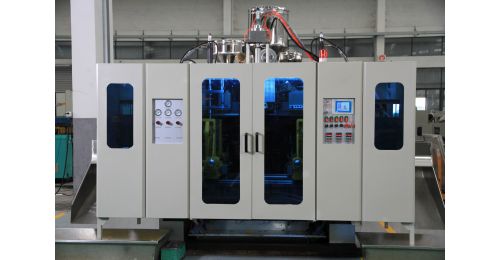

75K+S2X1.10F 10L Oil Bottle Blow Molding Machines

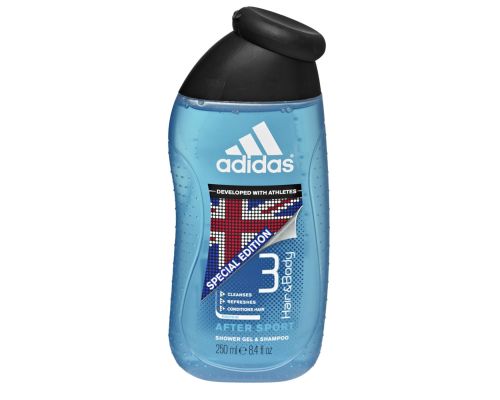

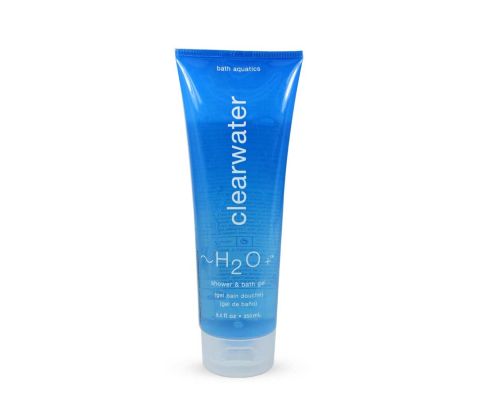

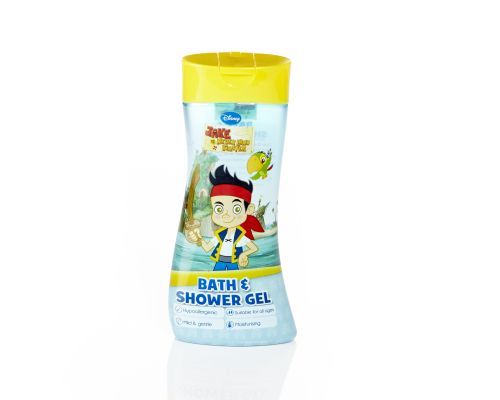

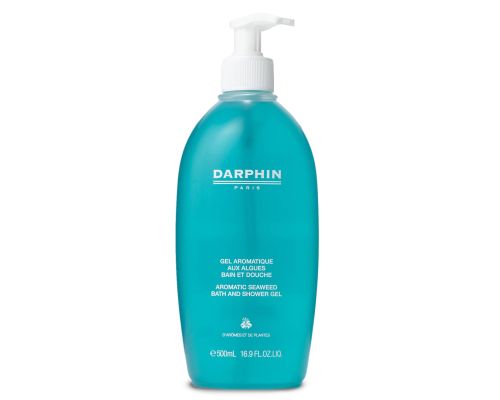

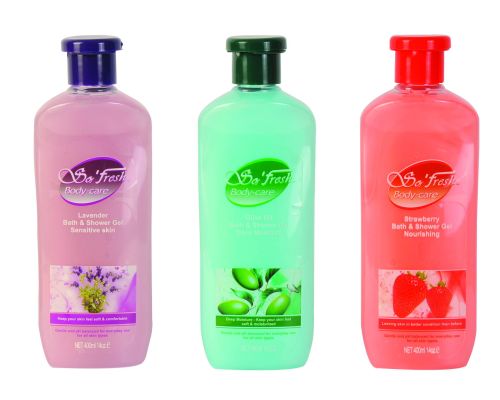

bathgel

Bathgel

milk-bottle

np7

E-catalog Inquiry Now Viedo Applied Products

Introduction

75K+S2X1.10F 10L oil bottle blow molding machines can produce 188 lubrication oil bottles (5 L, 250 g) per hour, 4500 per day, and 1.62 million per year. Its twin station can blow mould containers with maximum volume of 10 L.

General Features

1. Its screw diameter is 75 mm.
2. There are up to six mould heads for forming multi-layer plastic articles.
3. Siemens PLC and human-machine interface are adopted in the electric system of 75K+S2X1.10F 10L oil bottle blow molding machines.
4. Yuken hydraulic valves and pumps are employed in its hydraulic system.
5. Plasticizing system in this 10L extrusion blow moulding device is of high efficiency and less energy consumption.
6. Parison injection applies highly synchronized single hydraulic cylinder.
7. Extruding cover is adjustable upwards and downwards. The mould head is moved by hydraulic power, and mold changing is convenient.
8. 75K+S2X1.10F 10L oil bottle blow molding machines adopt center locking clamping mechanism to guarantee long-term clamping force.

Technical Data of 75K+S2X1.10F 10L Extrusion Blow Moulding Device

1. General Features

Carriage horizontal shuttle stroke	mm	500
Dry cycle	sec	13”
Clamp force	kN	100
Pressure of Hydraulic System	Mpa	14
Pressure of Pneumatic System	Mpa	0.6-0.8
Pressure of Cooling System	Mpa	0.2-0.3
Air consumption (estimated)	m3 / hr	5
Minimum pressure for cooling water to machine	Mpa	0.2
Power of pump motor for hydraulic movements	kW	11
Power of servo pump motor(if needed)	kW	(5.5)
power of Die head heating	kW	7
Power of knife	kW	2
Total power installed (estimated, maximum)	kW	54.5(62.5)

2. Extruders

Screw diameter	mm	75
Extruder rotating speed	/	20~63/(20~78)
Power of electric motor	kW	22/(30)
Power of barrel heating	kW	12.5
Max throughput = PE	kg/h	95（105）
Max throughput = PP	kg/h	66.5(73.5)

3. Mould Dimensions

Maximum Width	A	mm	380
Maximum Length	B	mm	430
Minimum Depth	C	mm	115
Clamp Open Max. Daylight	D	mm	580
Open Stroke	E	mm	230
Max Weight of Mould		kg	100

4. Production Possibilities

Cavities		1	2	4
Max center distance	mm	/	170/200	85/100
Max container width	mm	360	160/190	75/90
Max container height	mm	160	160	160
Max container depth	mm	90	90	90
Container capacity (estimated)	lt	10	2.5	1

5. Machine Dimensions

Maximum width	mm	2200
Maximum length	mm	3930
Maximum height	mm	2500
Total weight	kg	6300

We provide free installation service to clients in China. To all clients nationwide and worldwide, we offer one year warranty time for 75K+S2X1.10F 10L oil bottle blow molding machines. During this period, broken machine parts, not including the quick wear parts, can be changed into new ones without charge.
