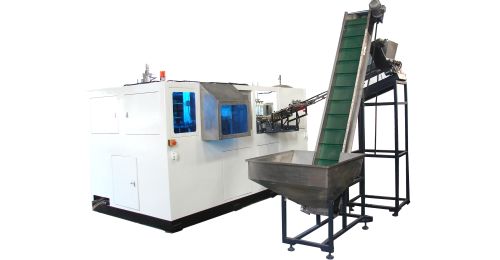

EPET06-6H Stretch Blow Molding Machine

PET

PET

PET

PET

PET

PET

PET

PET

PET

PET

PET

PET

Features:

• 1. EPET06-6H high speed stretching blowing machine adopts energy saving servo control that not only could accomplish high-speed mold open/close but also save 30% energy compare to the same kinds of machines made by other manufacturers.
• 2. The mold clamping employs three-plate self-locking during which the mold is fast clamped at first and then get slow with increasing clamping force.
• 3. Heating box structure is designed at 6 adjusted zone, fulfilling different heating requirements for different tube length.
• 4. This high speed stretching blowing machine is with stable pneumatic system, which makes the buffer device work smoothly without loud noise.
• 5. It is controlled by all electric servo motor, which can avoid the leakage of hydraulic oil and thus contamination of the product.
• 6. It is with 6 cavities and the maximum blow volume is 0.6 L.
• 7. These machines have a unique design according to the effect on the PET material. Multiple blowing steps reduce PET residual stress.
• 8. Hot fill PET bottles made by this high speed stretching blowing machine are able to stand high temperatures ranging from 82°C to 95°C without deformation. This is an incredible success in the hot fill beverage domain.
• 9. It is operated by user-friendly PLC system.
• 10. Molding change is fast and simple.
• 11. Preform positioning is by servo-motor technology.
• 12. It is ideal machine for medium output production needs.

Technical Specifications of EPET06-6H High Speed Stretching Blowing Machine

Molding Specification	Output (Basic on 0.6 L Bottle)	bph	8300
	Clamping Force	kN	600
	Max. Mold Stroke	mm	100
	Mold Thickness	mm	180
	Max. Mold Size (H × W)	mm	320 × 465
	Stretching Stroke	mm	340
	Bottom Stroke	mm	50
	Cavity Distance	mm	76.2
	Number of Cavities	/	6
Bottle Specification	Max. Bottle Capacity	L	0.6
	Neck Diameter Range	mm	18-35
	Bottle Diameter	mm	68
	Bottle Height	mm	240
Electrisify Specification	Heating Power	kW	38
	Preform Feeding Motor	kW	0.25
	Rotating Motor	kW	0.12
	Revolution Motor	kW	1.5
	Clamping Motor	kW	3
	Total Power	kW	43
	Actual Power Consumption	kW	≤ 25
Air Compressor Specification (Basic on 0.6 L Bottle)	Operating Pressure	Mpa	0.7
	Low Pressure Air Consumption	m3/min	1.5
	Blowing Pressure	Mpa	3.5
	High Pressure Air Consumption	m3/min	6
Chiller Specification	Operating Pressure	kg/cm2	5
	Temperature Range	℃	25
	Heat Consumption	kcal/hr	45000
	Flow Rate	L/min	150
Machine Specification	Size (L × W × H)	m	3.8 × 2.15 × 2.5
	Weight	kg	5200
Mould Plate (mm）
